各种建筑物的供暖设计热负荷汇总，你从来没见过这么屌的总结！

(2022-03-31 16:39:24)

标签：

暖通

暖通工程师

暖通设计

暖通空调

https://p6.toutiaoimg.com/origin/tos-cn-i-qvj2lq49k0/4b36d79d95f84cb6905e5cc89d7027c8?from=pc

https://p6.toutiaoimg.com/origin/tos-cn-i-qvj2lq49k0/9f15527636ff4e55857bbbb53fab5a1c?from=pc

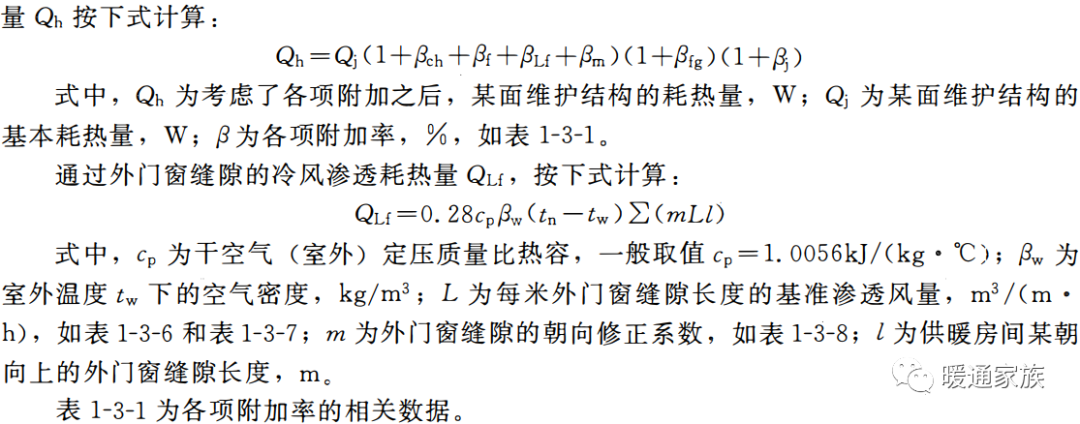

https://p6.toutiaoimg.com/origin/tos-cn-i-qvj2lq49k0/cdfe3fa77df442468e27cadcd5c83988?from=pc

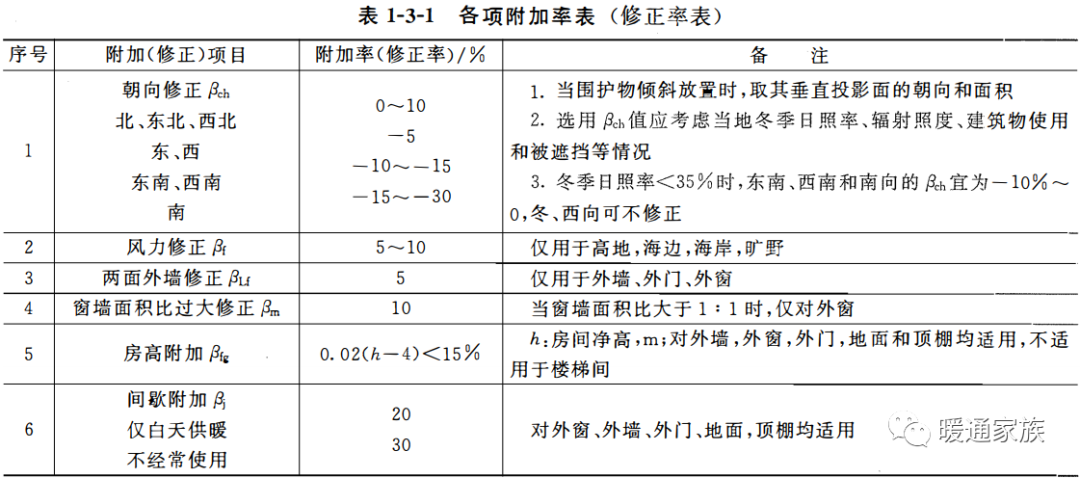

https://p6.toutiaoimg.com/origin/tos-cn-i-qvj2lq49k0/c54ca285d79f4a44bce2a909af709caa?from=pc

https://p6.toutiaoimg.com/origin/tos-cn-i-qvj2lq49k0/dbbe72d5d8a14951b2fae2acd817b7de?from=pc

https://p6.toutiaoimg.com/origin/tos-cn-i-qvj2lq49k0/fc8488c943da464f821a0d46724904e4?from=pc

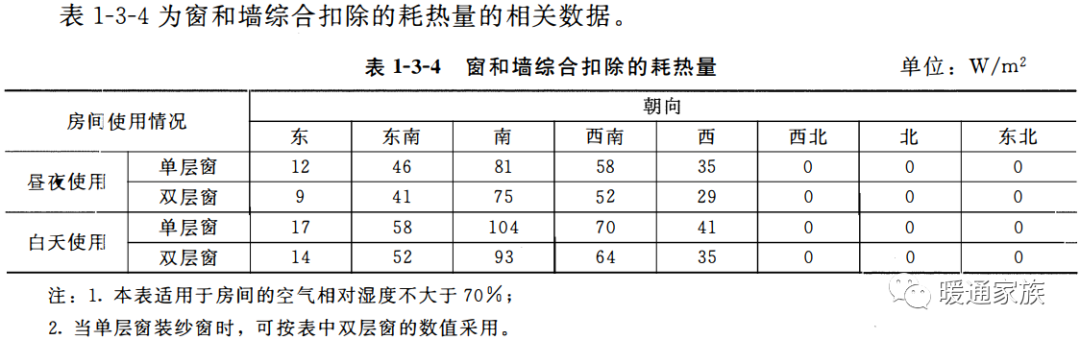

https://p6.toutiaoimg.com/origin/tos-cn-i-qvj2lq49k0/bcec0b26b3004bf1a147a6c18b91626d?from=pc

https://p6.toutiaoimg.com/origin/tos-cn-i-qvj2lq49k0/aa1ef9215ea346ad823fa3b0a655cf0e?from=pc

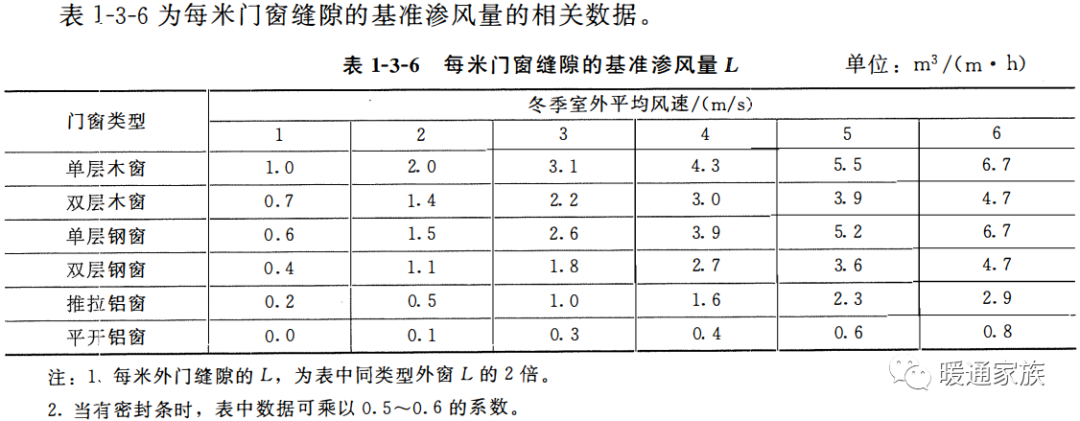

https://p6.toutiaoimg.com/origin/tos-cn-i-qvj2lq49k0/c6cd1274493e4694a455a3b26aa990e1?from=pc

https://p6.toutiaoimg.com/origin/tos-cn-i-qvj2lq49k0/6296beb3470d41c796f33f5028d06528?from=pc

https://p6.toutiaoimg.com/origin/tos-cn-i-qvj2lq49k0/32fd088979254110b693e52834056d50?from=pc

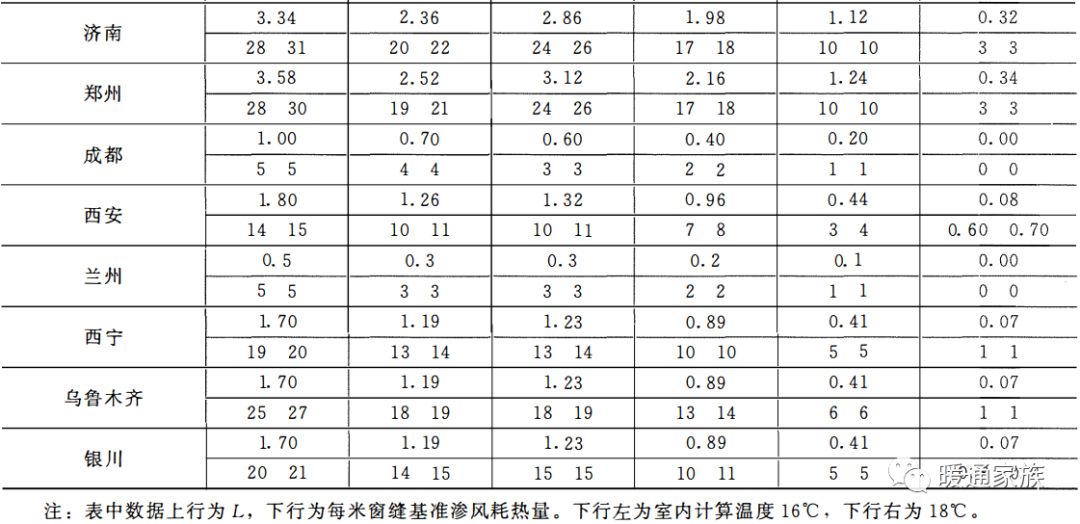

https://p6.toutiaoimg.com/origin/tos-cn-i-qvj2lq49k0/753766a61b134d41b1b809e9d18c5f64?from=pc

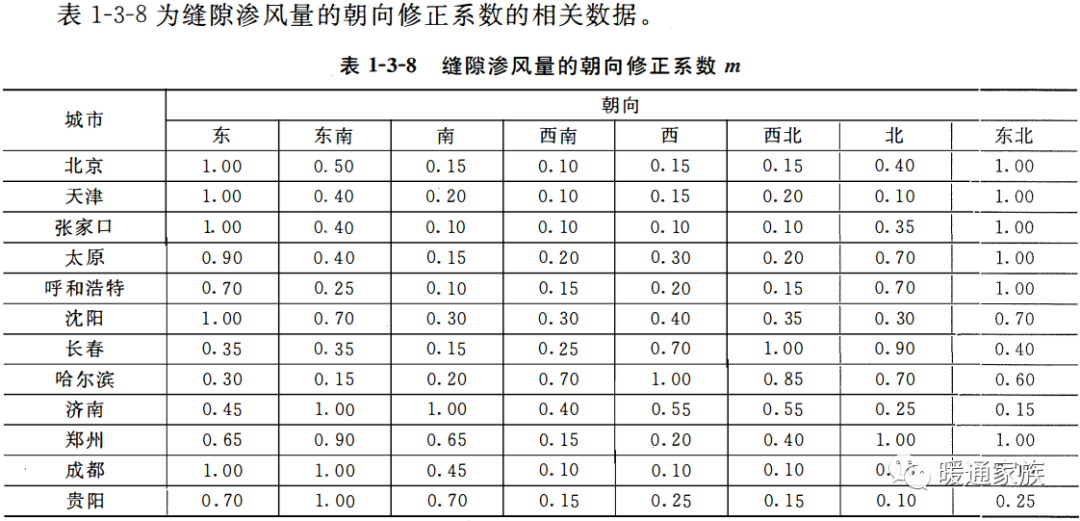

https://p6.toutiaoimg.com/origin/tos-cn-i-qvj2lq49k0/8b8376cf36bf4ce58ab4f76d671efecb?from=pc

https://p6.toutiaoimg.com/origin/tos-cn-i-qvj2lq49k0/d6209e94bb6440e8bf340d0d167b2086?from=pc

https://p6.toutiaoimg.com/origin/tos-cn-i-qvj2lq49k0/32b0ca6e0c734a36b224f4cbe3f4d138?from=pc

https://p6.toutiaoimg.com/origin/tos-cn-i-qvj2lq49k0/834368cdfb2a469ea23d5b1716e779d4?from=pc

https://p6.toutiaoimg.com/origin/tos-cn-i-qvj2lq49k0/673c995bf23641f397b9aaec94acfbc2?from=pc

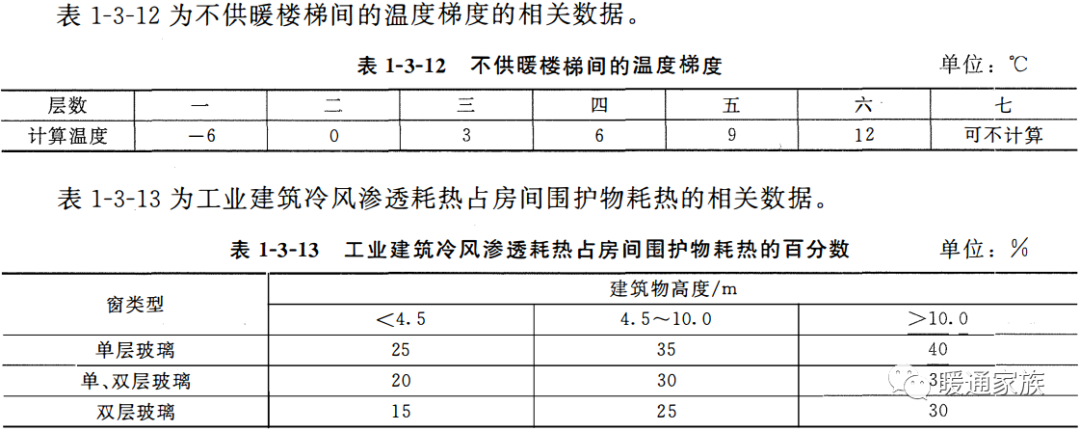

https://p6.toutiaoimg.com/origin/tos-cn-i-qvj2lq49k0/8a907b46b6b5409c967f4d09873c5243?from=pc

https://p6.toutiaoimg.com/origin/tos-cn-i-qvj2lq49k0/cdb472c341684adf8c09db7e1c4215b2?from=pc

https://p6.toutiaoimg.com/origin/tos-cn-i-qvj2lq49k0/9b6f1063de9f4ee49a63270179e84c15?from=pc

https://p6.toutiaoimg.com/origin/tos-cn-i-qvj2lq49k0/ce99145ea5624dc880405bac41730535?from=pc

https://p6.toutiaoimg.com/origin/tos-cn-i-qvj2lq49k0/4112a6585f784761a101f52a9c051374?from=pc

https://p6.toutiaoimg.com/origin/tos-cn-i-qvj2lq49k0/a197a2adb2ce42e2bb2b1a40d518a602?from=pc

https://p6.toutiaoimg.com/origin/tos-cn-i-qvj2lq49k0/e86bea6dc6814c969934e530b5217954?from=pc
