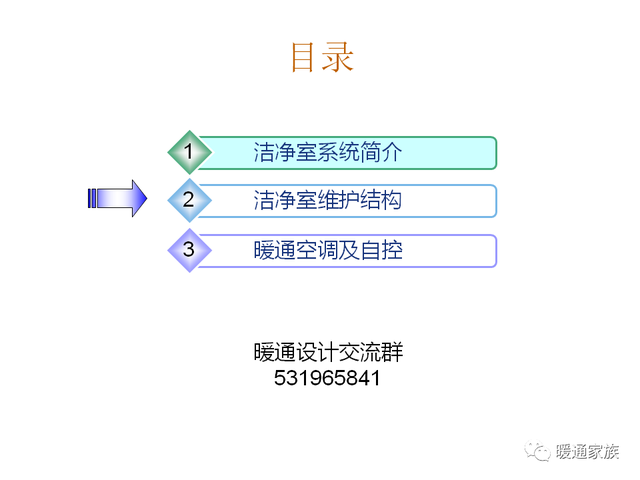

88页PPT,讲解洁净室系统+维护结构+空调自控,低手变高手

标签:
暖通暖通空调暖通设计暖通设计杜老师暖通工程师 |
洁净空调系统为了使洁净室内保持所需要的温度湿度、风速、压力和洁净度等参数,将向室内不断送入一定量经过处理的空气,以消除洁净室内外各种热湿干扰及尘埃污染的系统。

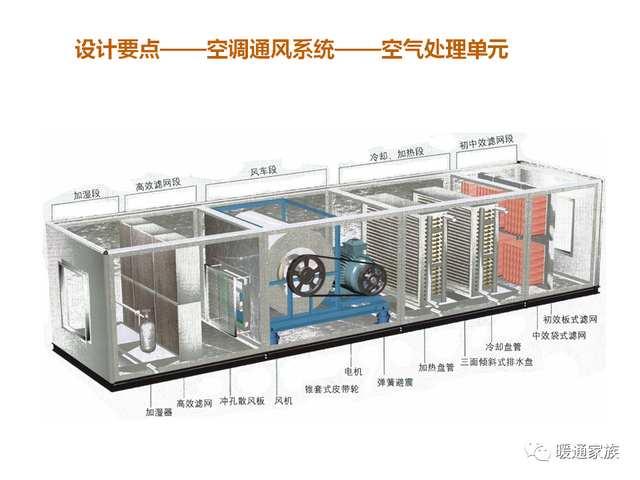

洁净空调系统基本由下列设备构成:
1、加热或冷却、加湿或去湿以及净化设备;2、将处理后的空气送入各洁净室并使之循环的空气输送设备及其管路;3、向系统提供热量、冷量、热源、冷源及其管路系统。
洁净空调系统一般分为三大类:
1、集中式洁净空调系统 :在系统内单个或多个洁净室所需的净化空调设备都集中在机房内,用送风管道将洁净空气配给各个洁净室。
2、分散式洁净空调系统:在系统内各个洁净室单独设置净化设备或净化空调设备。
3、半集中式洁净空调系统:在这种系统中,既有集中的净化空调机房,又有分散在各洁净室内的空气处理设备。是一种集中处理和局部处理相结合的形式。

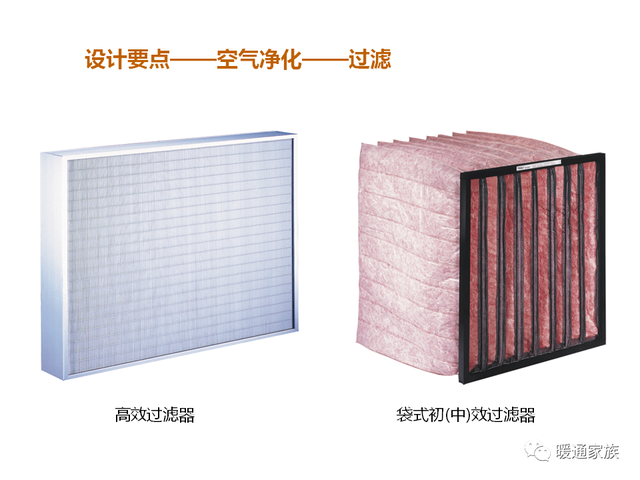

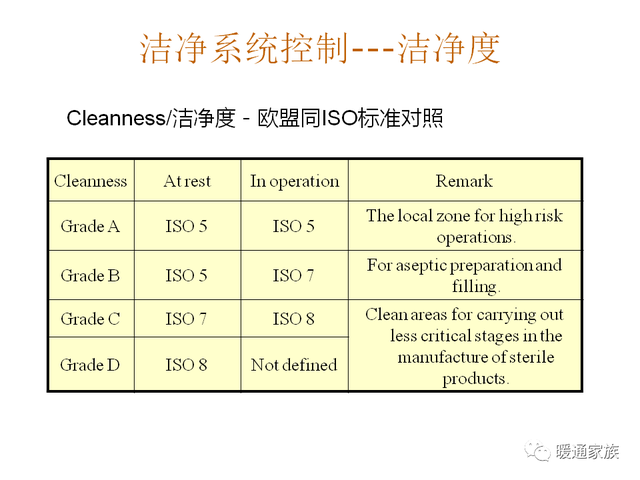

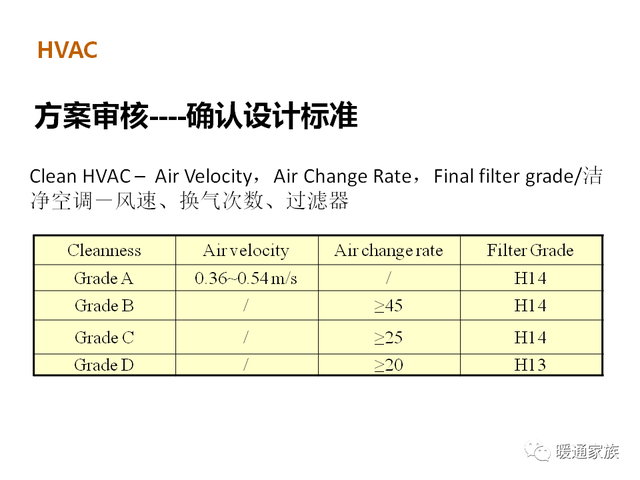

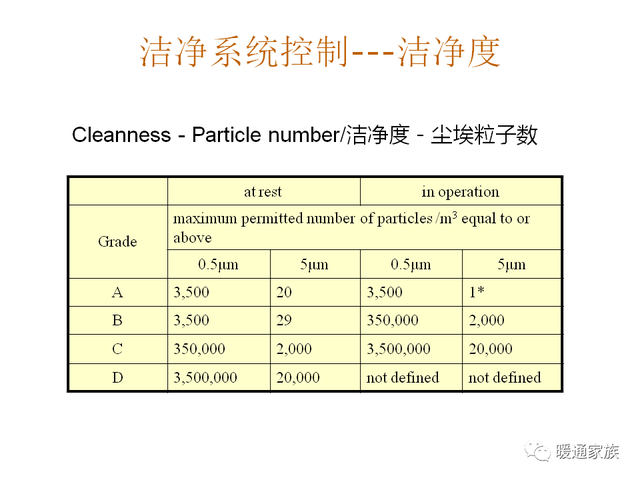

人们一般按系统内各洁净室的洁净度来命名系统,如称之为100级净化空调系统,1000级净化空调系统等。有时也按系统的末级过滤器的性质来区分,分高效空气净化系统,亚高效空气净化系统和中效空气净化系统。
https://p26-tt.byteimg.com/img/pgc-image/28f7d016f083451693b4f045551c1b2c~tplv-tt-shrink:640:0.image
https://p26-tt.byteimg.com/img/pgc-image/7b011217d8924a13b5f2cdd0f75428a5~tplv-tt-shrink:640:0.image
https://p26-tt.byteimg.com/img/pgc-image/f9fd258c85924c07a4a3c92a0ca9636c~tplv-tt-shrink:640:0.image
https://p26-tt.byteimg.com/img/pgc-image/2b0b1a34da584a3b8b6fc214508f22b8~tplv-tt-shrink:640:0.image
https://p26-tt.byteimg.com/img/pgc-image/1436ee6df1ba43039e45b0f7588f4c06~tplv-tt-shrink:640:0.image
https://p26-tt.byteimg.com/img/pgc-image/2ebe934228b54d0fb2b4f8e4f89e0723~tplv-tt-shrink:640:0.image
https://p26-tt.byteimg.com/img/pgc-image/86a1117193fc4d659842ffab59715885~tplv-tt-shrink:640:0.image
https://p26-tt.byteimg.com/img/pgc-image/2152446e84874c258631ac64ef6ef3ce~tplv-tt-shrink:640:0.image
https://p26-tt.byteimg.com/img/pgc-image/d88858fbeda14638b960e48bfd32b4c8~tplv-tt-shrink:640:0.image

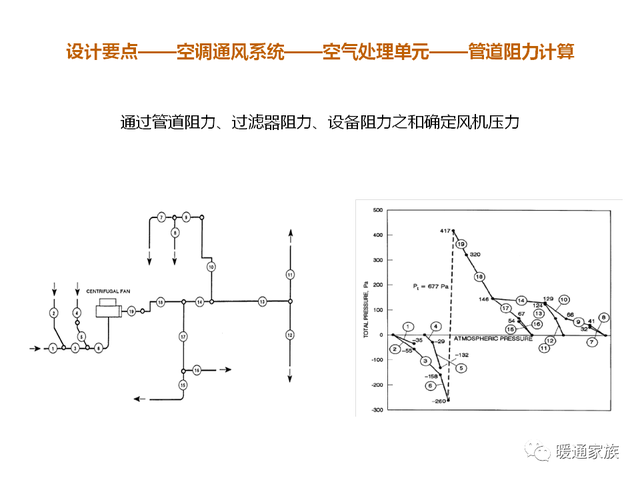

https://p26-tt.byteimg.com/img/pgc-image/f6ac9035b99545aa9a7f11bedd7cb872~tplv-tt-shrink:640:0.image
https://p26-tt.byteimg.com/img/pgc-image/2ce8c3157f5f4561aef8e40d654f1638~tplv-tt-shrink:640:0.image
https://p26-tt.byteimg.com/img/pgc-image/31b4963f5e6d4d278b97b331daa79b3a~tplv-tt-shrink:640:0.image

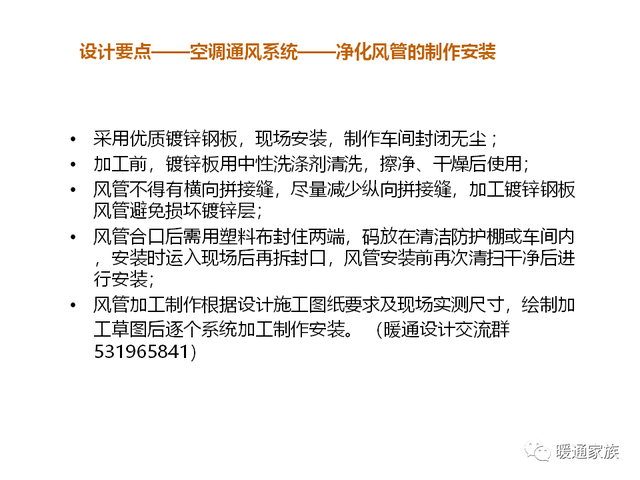

https://p26-tt.byteimg.com/img/pgc-image/0667d6e24bbe480f9d585f0f6225ed1f~tplv-tt-shrink:640:0.image
